How to Pack a Product into Multiple Packages using WooCommerce FedEx Shipping Plugin

This article will show you how to optimally sell products that have multiple parts. You will also see how a store owner can divide a single product into multiple packages. Moreover, they can further ship them using WooCommerce FedEx Shipping plugin. Besides, this plugin will also help them show real-time shipping rates, directly from FedEx.

It is a fact that every store needs to implement different strategies in order to run a successful business. The foundation of these business strategies is based on the type of product sold in the store. For instance, selling multiple packages from other vendors require different business strategies than selling self-produced products.

But somehow, it is proving to be more and more difficult for the shop owners to implement these business strategies. This is because there has been a sudden migration of the local businesses to online platforms like WooCommerce. They find it difficult to ship their products because of the limitations such as packing methods, weight limits, and many others. But with simple techniques and appropriate digital solutions, they can find a way to achieve their business case.

So, without any further delay let us jump right into the article.

Understanding the multiple packages business case

Have a look at the following product.

multiple packages

This is a pack of three separate items

You can see that the weight of the entire product is 5 lbs with dimensions, 9x10x11 inches. This product is a set of three items that come along with it – Poster, T-shirt, and Wallpaper. Please note that each item has its own weight and dimensions.

In the FedEx Shipping plugin, we will define the Parcel Packing Method as Weight based and the Maximum weight limit as 2lbs. You can refer the following image for reference.

multiple packages

The maximum weight limit is 2lbs

As you can see in the above image, the Pack heavier items first have been selected as the Packing Process. In order to pack the items optimally, we have chosen this parcel packing method. Please note that this parcel packing method will not consider the dimensions of the items and will only calculate the shipping rates based on the weight.

Add More Shipping Fields Add-on plugin

This custom solution will allow you to set up your product in such a way that you will be able to set more than one package weight and dimensions to the same product.

In our case, since there are three products sold together as a single product, we can set up three packages. The weight and dimensions of the packages will be the same as that of the products that you are selling. Hence, while generating packages and shipping labels, the shipping plugins will easily distinguish this single product and pack it into three different packages.

Setting Up a WooCommerce Product that will be packed into Multiple Boxes using the Add-on

Pre-Requisites:

Other Plugins that support Add-More Shiping Fields Add-on plugin:

Follow the steps below to set up the product with multiple weights and dimensions.

  • Download and install the Add More Shipping Fields Add-on plugin from here
  • Activate the plugin and visit the product page for which you require multiple packages
  • Click on Edit Product
  • Under Shipping Tab, you can see the weight and dimensions of the product that you have entered
  • Click on Add More Dimensions and enter the weight and dimensions of the products that are going to ship together, as shown in the image below
    Add more dimensions and weight to the product
    Add more dimensions and weight to the product
  • Update the product

You can also refer to the video tutorial on how you can set this up and make sure your products are packed based on your requirements.

How does Add More Shipping Field Add-on plugin work?

As you can see in the video, we have mentioned the weight of each product not more than 2lbs. We have done this because if the weight of the package crosses the maximum weight limit of the packing method then the rule will break. This breakage will result in incorrect package quantity and thus, will show higher or lower rates than the actual rates.

In order to check out how this plugin works, just enable the debug mode. Once you set up the product using the add-on plugin, visit the Cart page and choose a shipping destination. In the debug request, you will be able to see the packages in the form of arrays, as shown in the image below.

multiple packages

The number of arrays will show the number of packages

In the video, you can see the there are three arrays, [0] => Array, [1] => Array and [2] => Array, that shows that there are three parcels of weights 2lbs, 2lbs and 1lbs respectively.

If you look at the FedEx Response, you will find that the FedEx is calculating the shipping rates by taking the weight as 5lbs. You can refer the following image for that.

multiple package

The total weight is shown as 5lbs

In the video shown above, we have enabled FedEx Ground as the only shipping service. If you compare the shipping rates to the that of the FedEx Rate calculator then you would find that the rates are same. Have a look at the following screenshot of the FedEx Rate calculator.

multiple package

Now, if we go ahead and place the order, the store owner can see the order something like shown in the screenshot below.

multiple packages

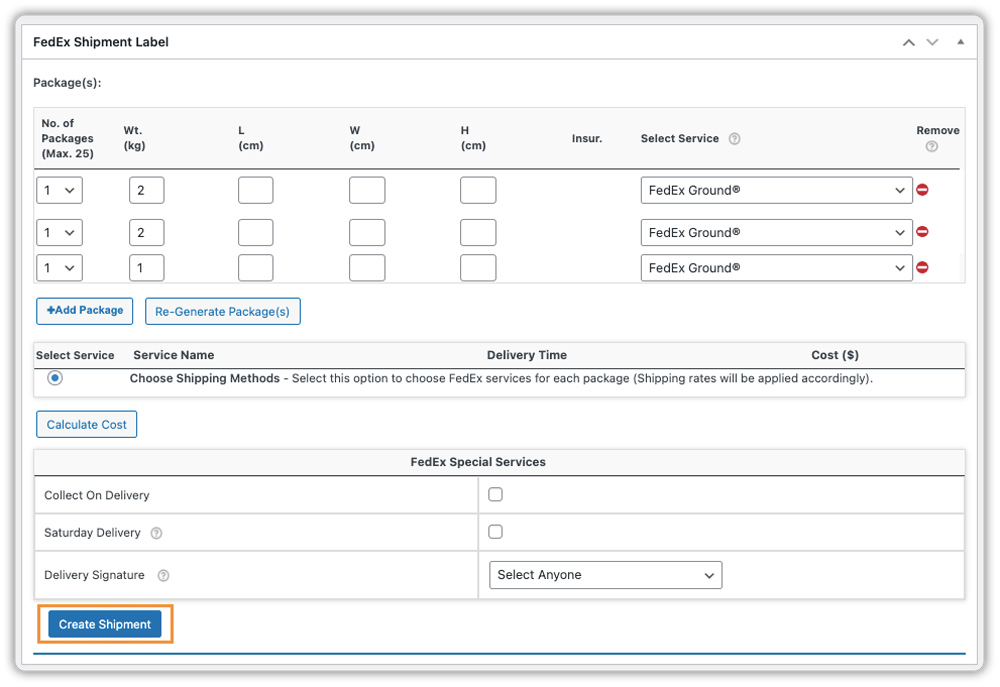

As you can see that there are three packages and if you click on the Create Shipment option, then the next page would something like this.

multiple packages

Three shipping labels are generated

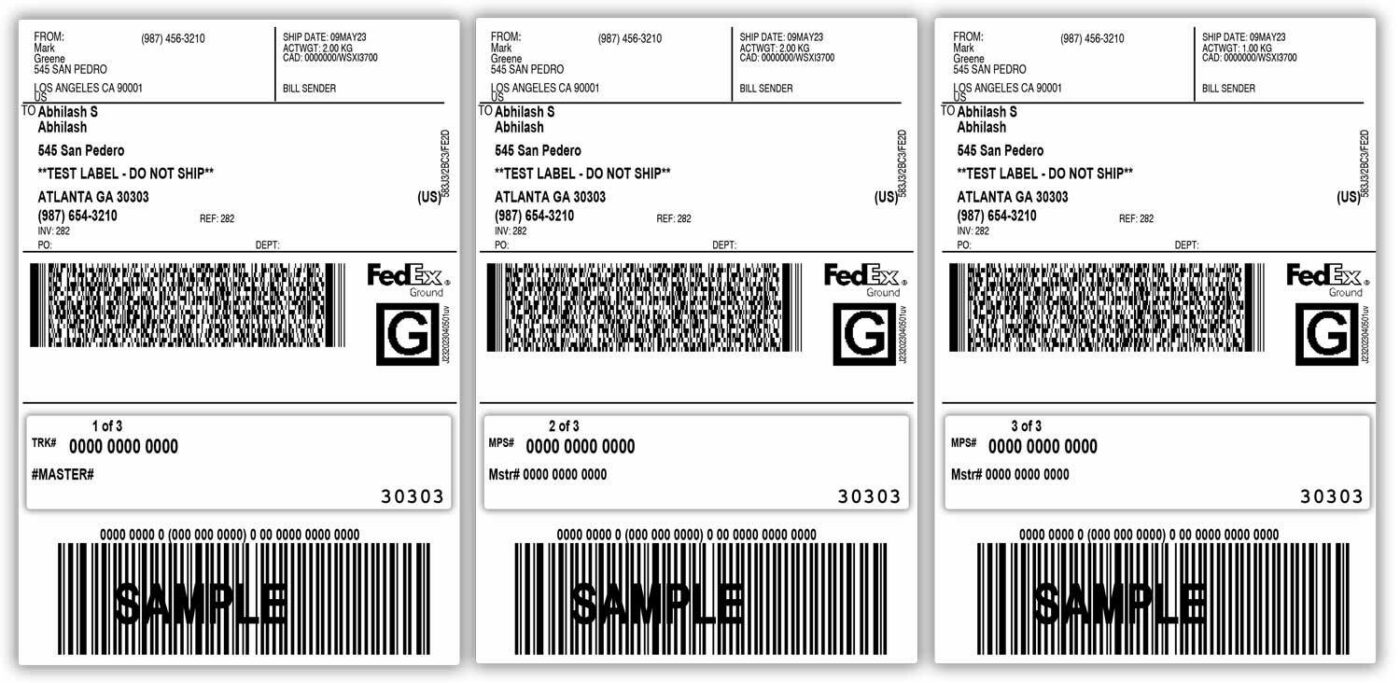

The shipping labels for these packages would like the following set of images.

multiple packages print label print label

This way customers can pay the exact shipping charges and you will be able to optimally pack your products into multiple packages.

Summary…

So this article covers an advanced functionality which can help a lot of store owners to customize the way they pack and ship their products. WooCommerce FedEx Shipping plugin and the add-on plugin together serve as a complete WooCommerce shipping solution. The need to add multiple dimensions and weight to the products has haunted the store owners for quite some time now. With this add-on, WooCommerce FedEx shipping plugin is the best way for the store owners to make sure their products are packed the way they want. At the same time, store owners can also enjoy other features of WooCommerce FedEx shipping plugin such as shipping labels, showing estimated delivery dates to the customers, shipment tracking, and much more.


If you have any query regarding this article or the integration of WooCommerce FedEx shipping plugin with the add-on plugin, feel free to share your views in the comment section below. I will be more than happy to help you understand how these plugins can work together in fulfilling your shipping requirements.

Or in case you are wondering what more does the WooCommerce FedEx Shipping plugin serve, I would request you to kindly check out the FedEx Shipping plugin. If you need assistance regarding our plugins, you can also contact our support team. We are always happy to help.

Last Updated On October 14, 2019
