Weight based Packing using UPS Shipping plugin

In this article, we will discuss one of the most important features of the WooCommerce UPS Shipping Plugin with Print Label, which is, the weight-based parcel packing method. Read below to know more about it.

Sometimes WooCommerce store owners come up with a special scenario which needs something different from the usual. Such was the case with one of our customers, where he wanted the plugin to calculate the shipping rates based on the billable weight of the package.

According to the customer,

I want the plugin to calculate the rates based on the billable weight of the package ONLY. As most of the time my products don’t have dimensions, so I would prefer a method where charges will be calculated based on the total weight of the package instead of the dimensions like height, length and breadth.

WooCommerce UPS Shipping plugin is the most suitable option in cases like these. But before we discuss the weight based packing, let’s get to know about the plugin in brief.

WooCommerce UPS Shipping Plugin

WooCommerce UPS Shipping plugin
WooCommerce UPS Shipping plugin

WooCommerce UPS Shipping plugin is the #1 UPS shipping plugin that has the capability to automate the whole shipping process. This plugin offers WooComerce store owners to get real-time UPS  shipping rates for domestic as well as international shipments. Besides this, the plugin offers advanced features such as bulk shipping label creation, shipment tracking across the globe, the ability to adjust shipping rates, etc. If you want to check out the whole list of features this plugin provides, kindly visit the link here.

Now since you are well aware of the plugin and the features it provides, let us check out how the plugin helps you to pack your products based on the weight of the products

UPS Parcel Packing Methods

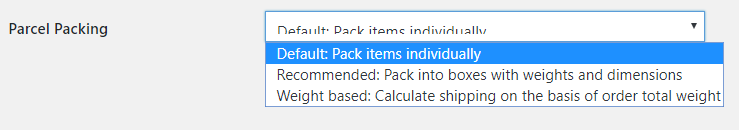

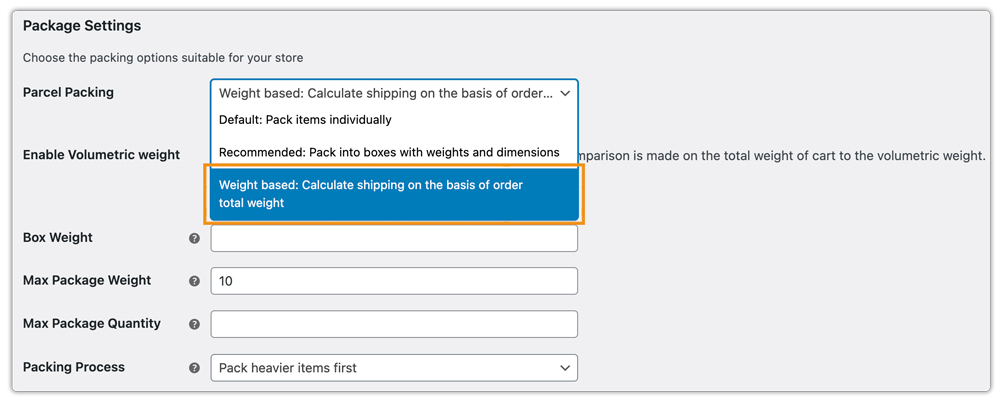

WooCommerce UPS Shipping plugin provides three options for parcel packing to the store owners. With the help of these parcel packing methods, store owners can choose the one that suits their business case. The image below shows the three parcel packing methods:

packing method

In this article, we will be discussing the Weight Based parcel packing method in detail.

Weight-Based Parcel Packing

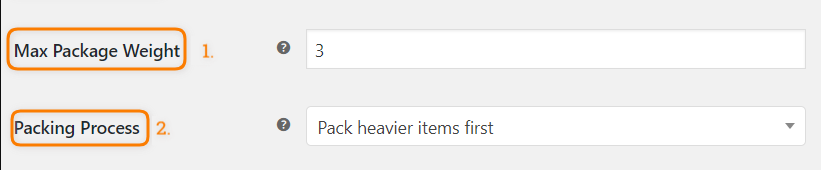

WooCommerce UPS Shipping plugin allows store owners to pack their products based on weight. This way the products which are not having dimensions can be packed easily. On selecting the weight based packing, you will be required to select among the following options for an optimized packing.

packing process

Now let’s check out these options in detail.

Max Package Weight

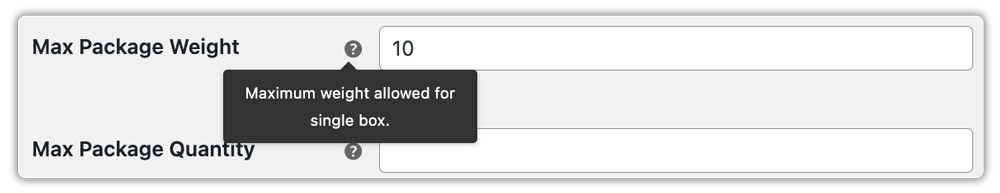

The plugin allows you to set up a Max Package Weight value. This allows store owners to pack up to that value in a single package. The image below shows the option to add a Max Package Weight value in the plugin settings.

max weight

The image above shows the Max Package Weight set at 10 lbs. Hence, all the products up to 10 lbs, you can pack in one package. If the total weight of all the products increases beyond 10 lbs, the additional products will be added to the new package.

Packing Process

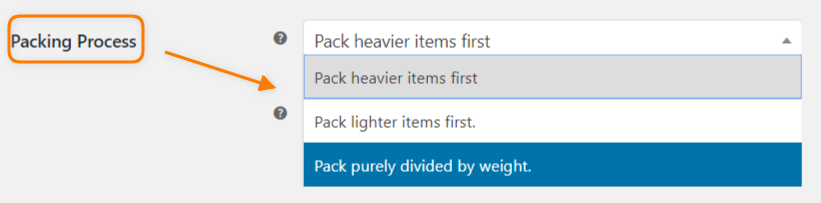

WooCommerce UPS Shipping Plugin also supports some of the predefined packing processes which you can select in the plugin settings. The image below will show you where you can select one of the processes to help you pack your products.

packing process

Now, let us discuss these processes in brief.

Pack Heavier Items First

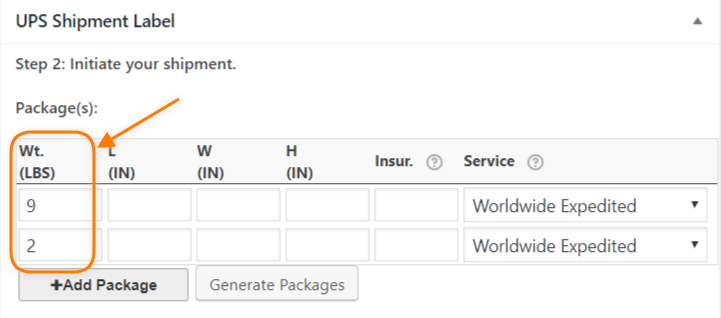

To understand these packing processes, let us take a real-life example. There are three types of products in a shop. Product A (3 lbs), Product B (2 lbs), Product C (6 lbs). Now, based on the weight-based packing, we have set the Max Weight as 10 lbs. So based on this packing process, the products will be packed as shown in the following image.

ups shipping label

  • Box A – Product C (6 lbs) + Product A (3 lbs) = Total of 9 lbs
  • Box B – Product B (2 lbs) = Total of 2 lbs

You can easily make out that this process packs the heavy products in the box until the box is either filled or the remaining products can no longer fit into the box. And once the Max Weight is reached, it packs the remaining products into another box.

Pack Lighter Item First

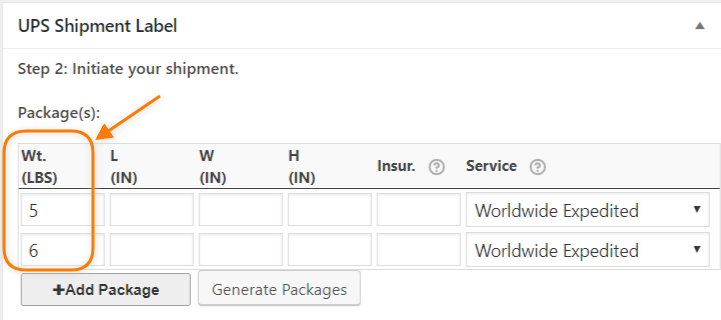

In contrast to the previous packing process, this way the lighter products are packed first till the Max Weight is reached or a product can no longer fit into the box. And once the Max Weight is reached, it takes another box to pack the remaining products. So the same scenario will be different while using this packing process. The image below shows the packages created using this process.

ups shipment

  • Box A – Product B (2 lbs) + Product A (3 lbs) = Total of 5 lbs
  • Box B – Product C (6 lbs) = Total of 6 lbs

Purely Divided By Weight

This packing process is different from the other two processes. Packing using this process involves separating and then packing different products having the same weight together. In simple words, all the products with the same weight will be packed in one box until the weight limit reaches.

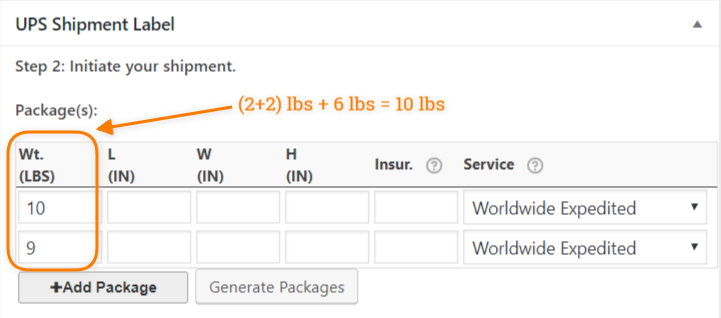

For example, consider there are 3 of Product A (3 lbs), 2 of Product B (2 lbs) and 1 Product A (6 lbs) in one orders. Using this process, all the products with similar weight will be packed in one box. The image shows the products packed based on their weight.

ten lbs

  • Box A – 2 x Product A (2 lbs) = Total 4 lbs

But since the package can still contain an additional 6 lbs, the other product with 6 lbs weight can be added to this box.

  • Box A – 2 x Product A (2 lbs) + 1 x Product C (6 lbs) = Total 10 lbs
  • Box B – 3 x Product B (3 lbs) = Total 9 lbs

Packing based on Volumetric Weight

WooCommerce provides an option to add weight to the products based on the fact that the products will be shipped based on the weight of the products. However, this is not true in every scenario.

Does it ever happen to you that you may be shipping a product that may not weigh much but it requires more space..?

Products such as cotton balls, pillows, etc. do not have much weight. However, the space they require for packing is comparatively greater than their weight. In such scenarios, actual weight is not considered for calculating the shipping rates. It is because the volumetric weight of the product exceeds the actual weight of the product.

Let us take an example of such a product in order to understand the concept of volumetric weight in a better way.

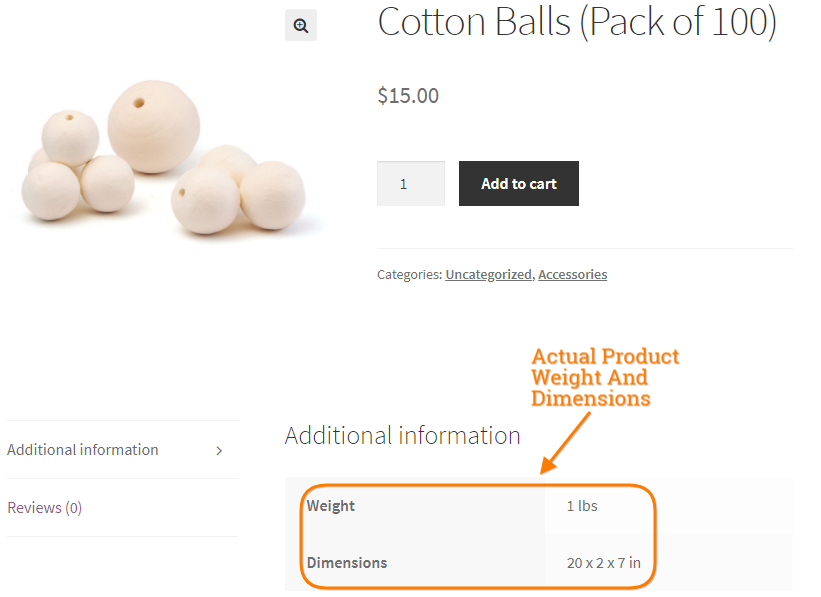

Product-weight-and-dimension

Here is a product which has a higher volumetric weight than the actual weight of the products. Now, let us see how you can compare the volumetric weight and the actual weight of the products.

How To Calculate Volumetric Weight Of Your Products..?

So, now we have the actual weight and the dimensions of our product, let us see how you can calculate the volumetric weight of your products easily.

Dimensions of the product
20 x 07 x 02 in = 50.8 x 17.78 x 5.08 cm

The volume of the products
280 cu. in = 4588.37792 cu. cm = 4588.4 cu. cm

Volumetric Weight = Volume / 5000 kg
4588.4 / 5000 kg = 0.91768 kg

Volumetric Weight (in lbs)
2.023138088 lbs = 2 lbs

Now, since we already had the actual weight of the product, we can easily compare and see which one is greater.

Actual Weight of the Product – 1 lb
Volumetric Weight of the Product – 2 lbs

Now, let us check out how UPS returns the shipping rates for this product.

UPS official rates

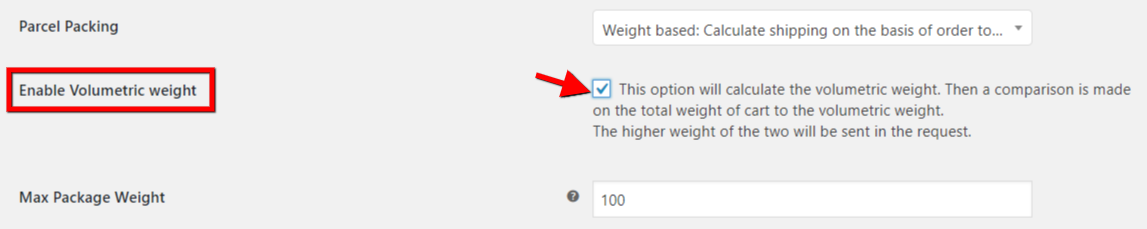

You can clearly see that the billable weight is not the actual weight of the product, but the volumetric weight. The same way if you enable the volumetric weight in the plugin settings, as shown in the image below, you will get the shipping rates based on the volumetric weight of the product.

Note: The plugin will only return the shipping rates based on Volumetric Weight when,
The Volumetric Weight IS GREATER THAN The Actual Weight

Volumetric weight for UPS

Summary…

This article covers one of the most important features of WooCommerce UPS Shipping plugin. Most of the WooCommerce store owners who prefer automated shipping rates directly from the shipping carrier would like to get the shipping rates based on the weight of the products. In this article, we discussed how using WooCommerce UPS Shipping plugin and its weight based packing method, store owners can easily select how many products they want to pack into a single package. This will allow them to pack their products based on their own requirements and make it more convenient for them to ship products.

About the Plugin…

WooCommerce UPS Shipping plugin

  • Get real-time accurate UPS Shipping rates
  • Add extra handling charges to the shipping cost
  • Provide discounts on shipping cost
  • Generate shipping labels
  • Track your UPS Shipments
  • Premium Version Cost – $69
Last Updated On November 23, 2018
